Client: Arch Triumph and EcoSpace Ltd at the Victoria and Albert Museum of Childhood in Bethnal Green, London.
To provide a system which would anchor an art installation in the form of a public access pavilion, a temporary structure which was to be erected for the London Festival of Architecture during June 2014. Load tests and calculations would be required and appropriate recommendations made.
Challenges
The pavilion was structured in such a way that the end enclosures provided most of the lateral support for the pavilion. Any anchoring needed to be buried, easily and quickly installed with no protruding guy wires. As this installation was part of an annual event, the anchoring system needed to be reusable.

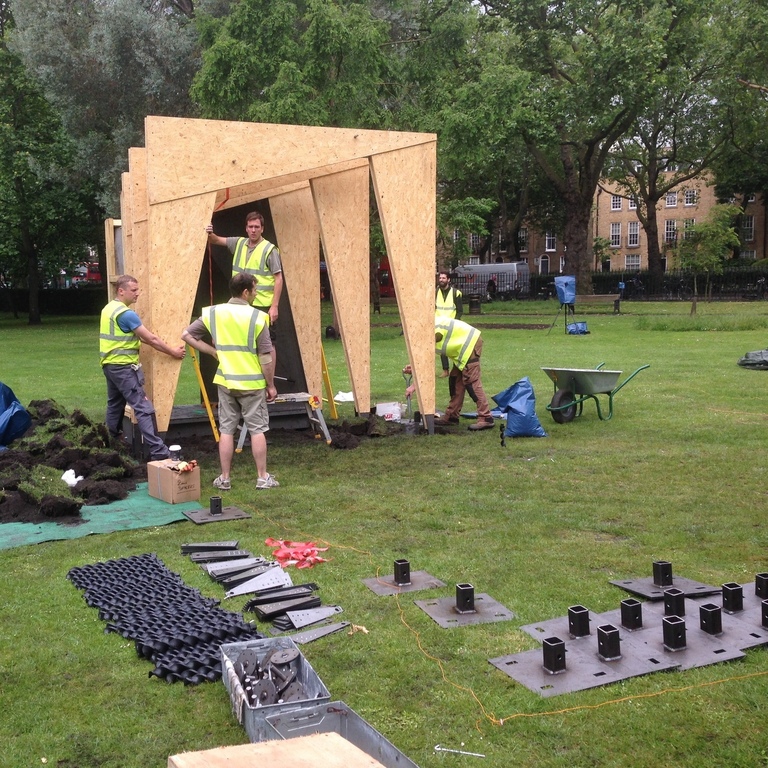

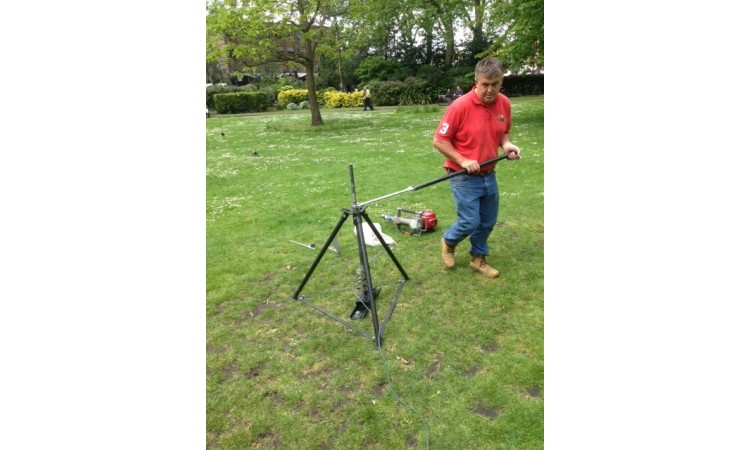

Solution
