How to Install

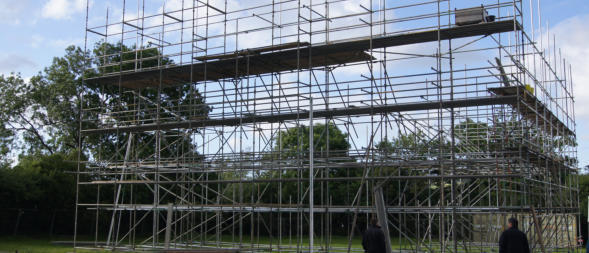

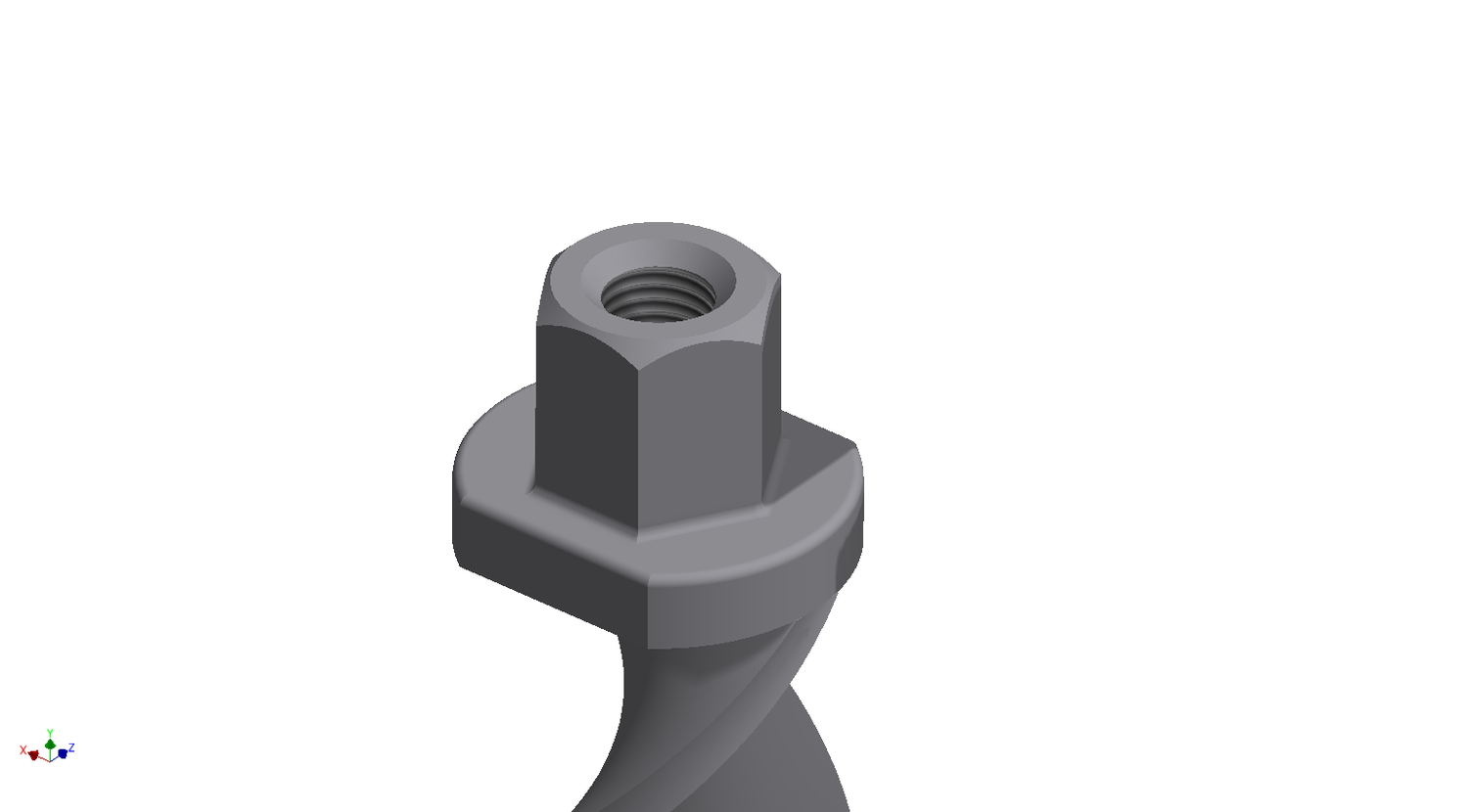

Using a threaded head anchor, install to anchor neck by driving into position. Our anchors are impact in, they drive down on their helix. Screw the scaffold ring bolt (FS602 with M16 locking nut, FS142) or collared eyebolts (FS252) into the top of the threaded head anchor and feed scaffold poles through.

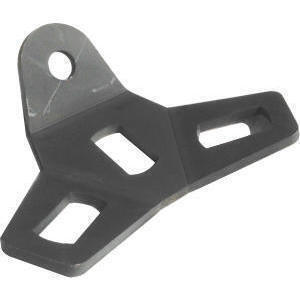

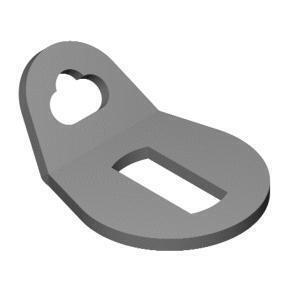

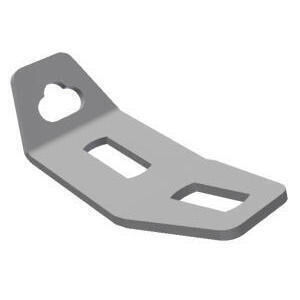

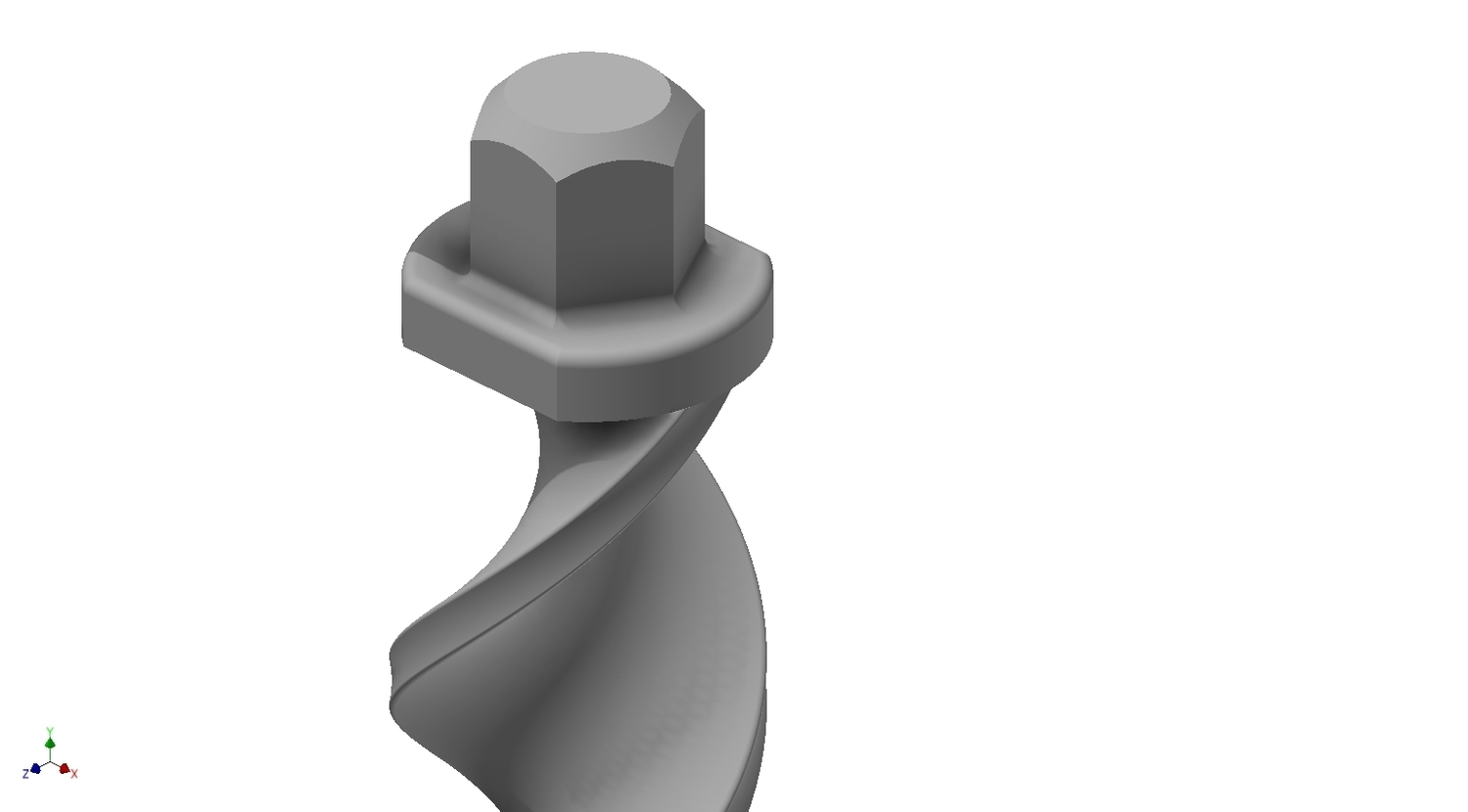

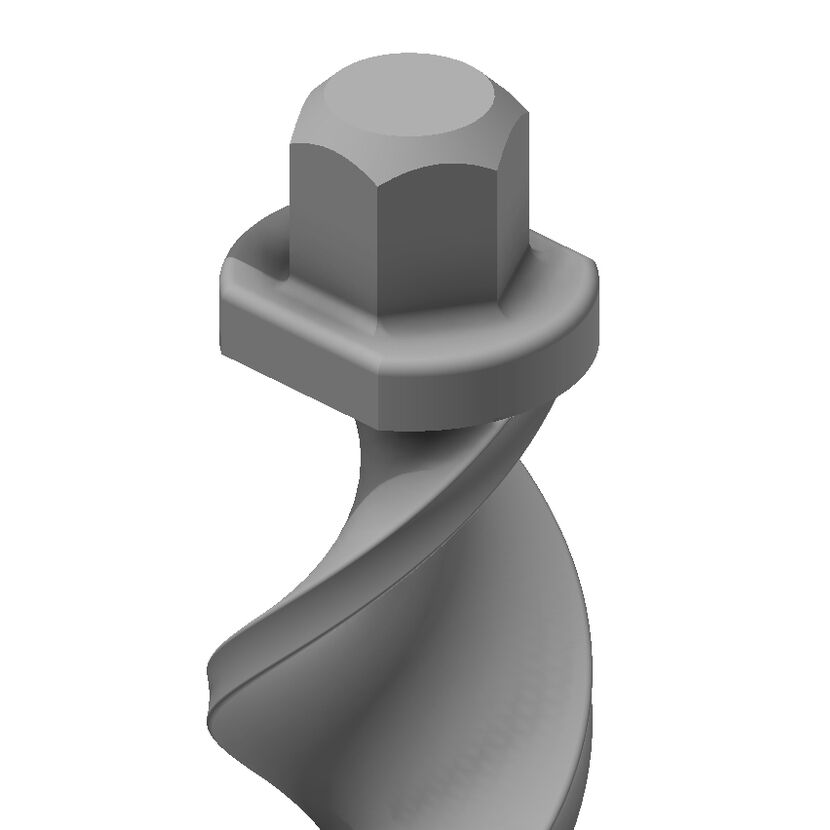

If you are using guy wires or ratchet straps use a solid head anchor and one of our through slot brackets (SA453 single slot, SA454 double slot or the SA455 triple slot), place bracket on ground in direction of tethering strap, drive anchor down through slot in bracket. Once the anchor collar hits the bracket then the anchor is considered fully installed.
